Universal Isolation Terminal
Right Angle Terminal
Reliable, watertight cable grounding for harsh environments

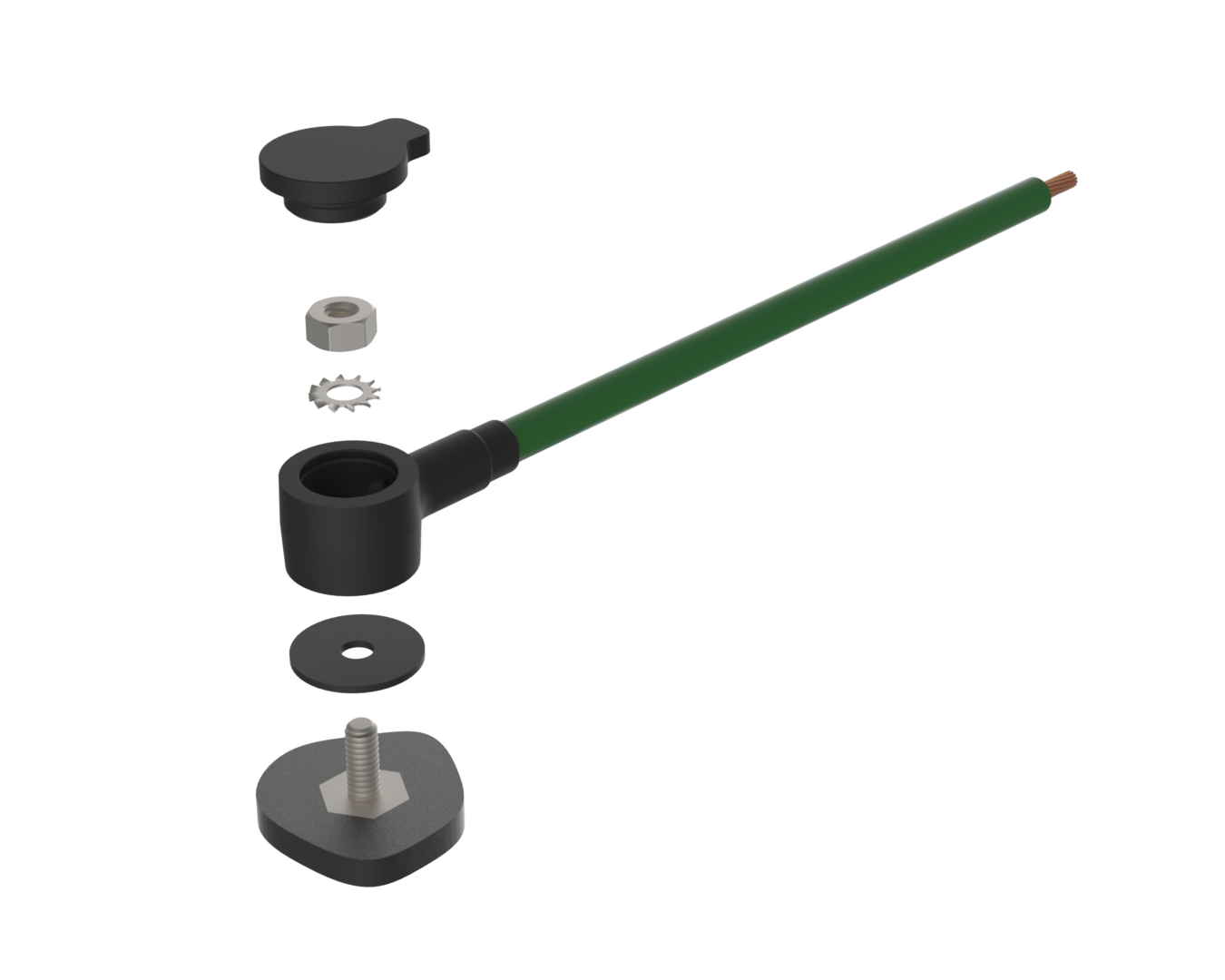

The Universal Isolation Terminal (UIT) delivers an insulated, watertight connection to the external
grounding lug on a wide range of splice enclosures. The UIT was designed to help in the locating of
buried fiber optic cables especially in wet or flooded conditions, the UIT helps prevent signal shorting
caused by moisture or debris in manholes and vaults—ensuring accurate cable locate when it matters
most. UITs are available in multiple sizes and configurations to suit various enclosure types and site
conditions.

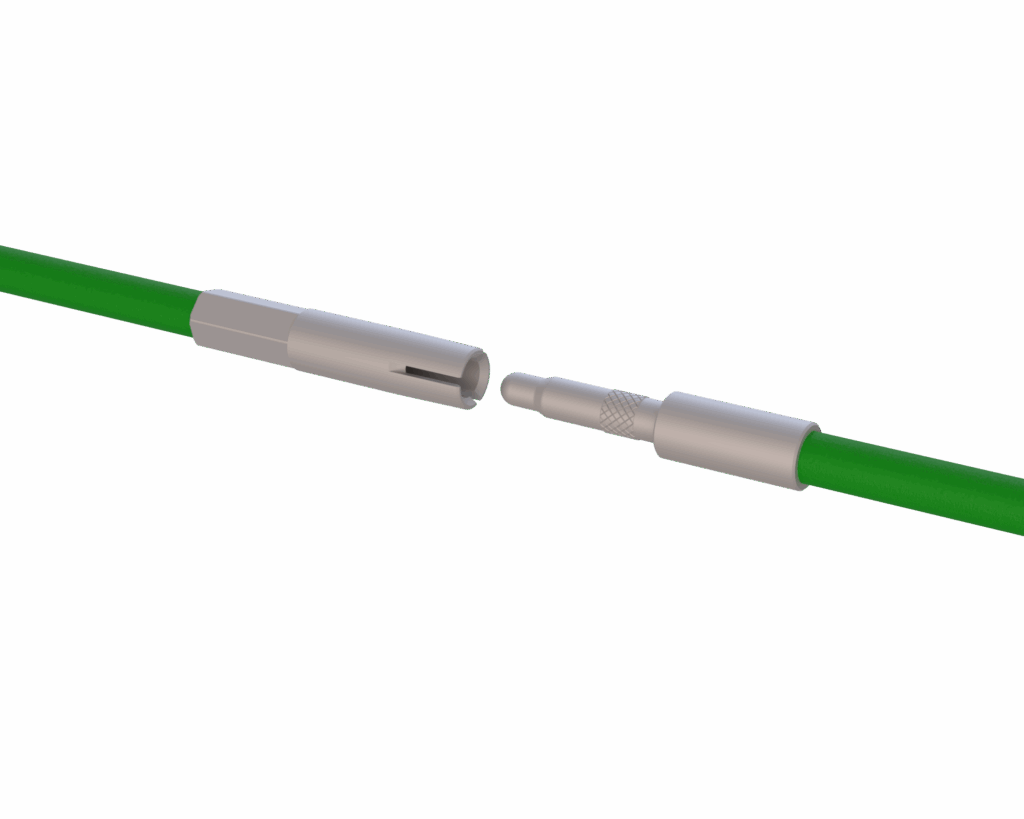

Quick Disconnect
The Quick Disconnect was designed to reduce the amount of #6 copper wire required for properly locating each fiber optic cable spliced in a vault or manhole. Traditionally, a continuous run of #6 copper locate wire was needed from the locate terminal the full length of the fiber service loop to the ground locating lug on the splice enclosure for each cable. When using the Quick Disconnect you can reduce as much as 95% of the #6 locate wire used at each splice point.
Technical Specifications
- 6 AWG Stranded Copper
- ¼” (6mm) Eyelet Lug Size

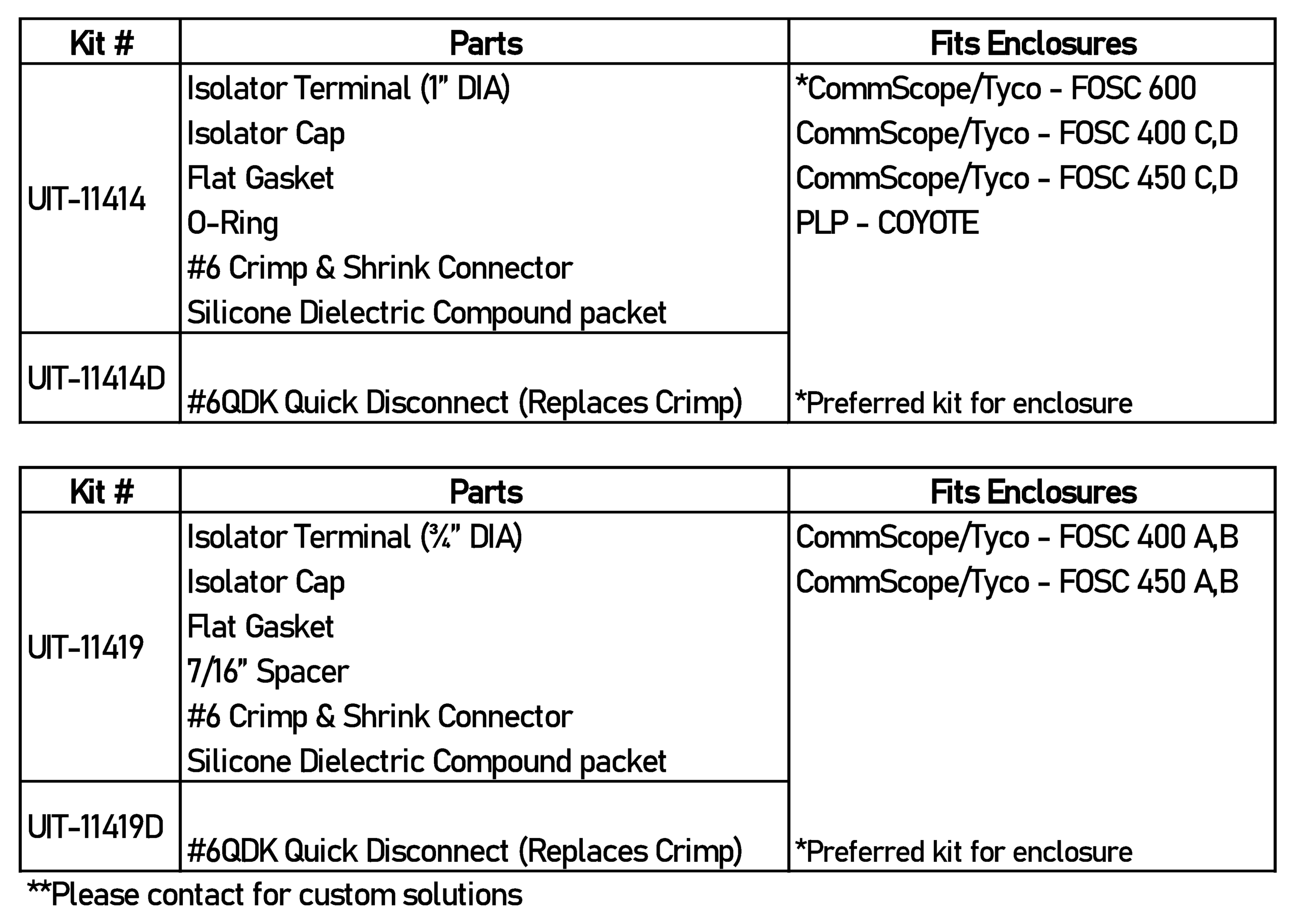

Kit Descriptions:

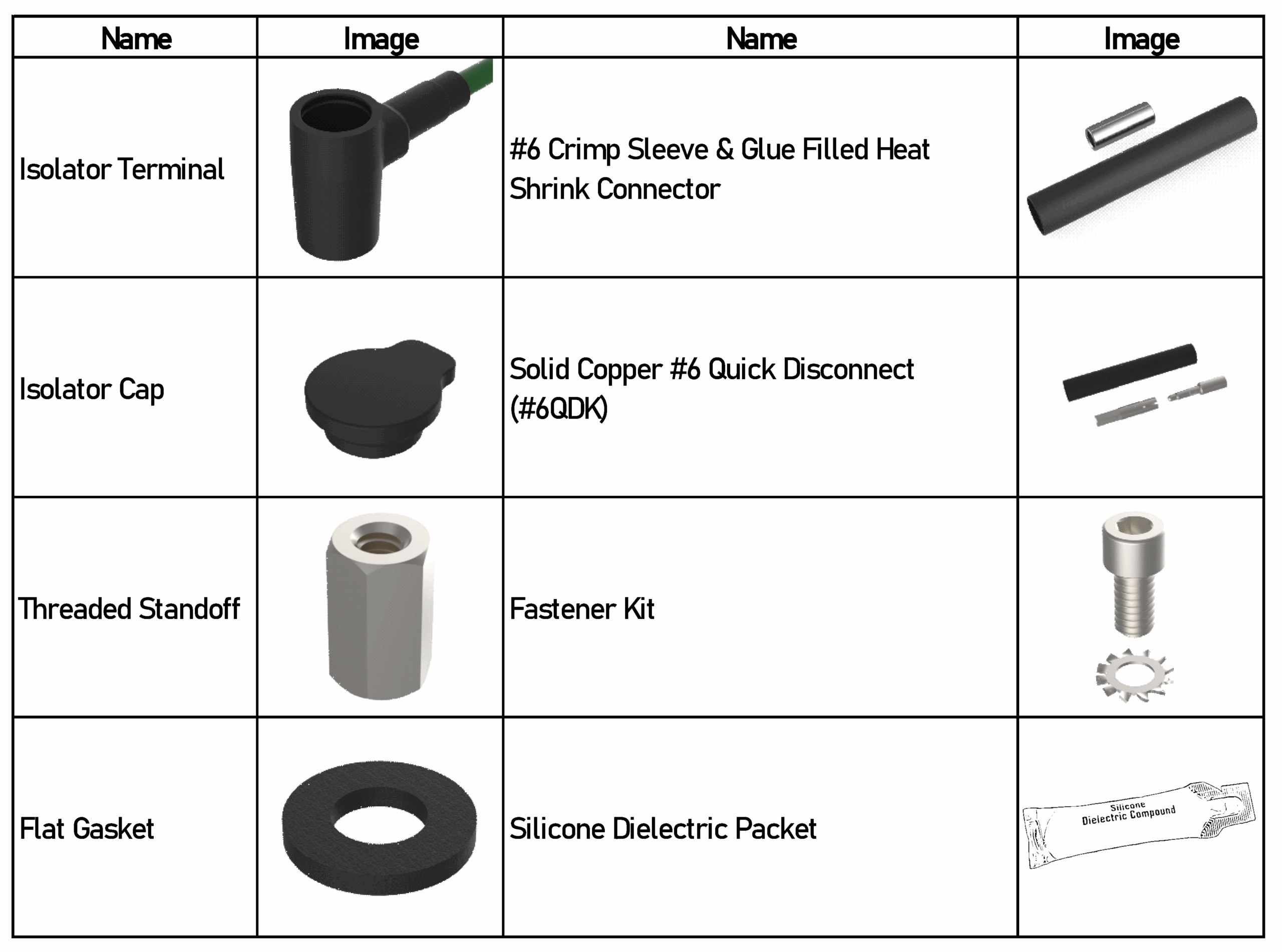

Components:
